Ham Radio Dipole Antenna- OCF Off-center-fed 40 meter Half-Wave w/4:1 Balun 500w
Ham Radio Dipole Antenna- OCF Off-center-fed 40 meter Half-Wave w/4:1 Balun 500w
Regular price
$77.43 USD
Regular price
Sale price
$77.43 USD
Unit price
per

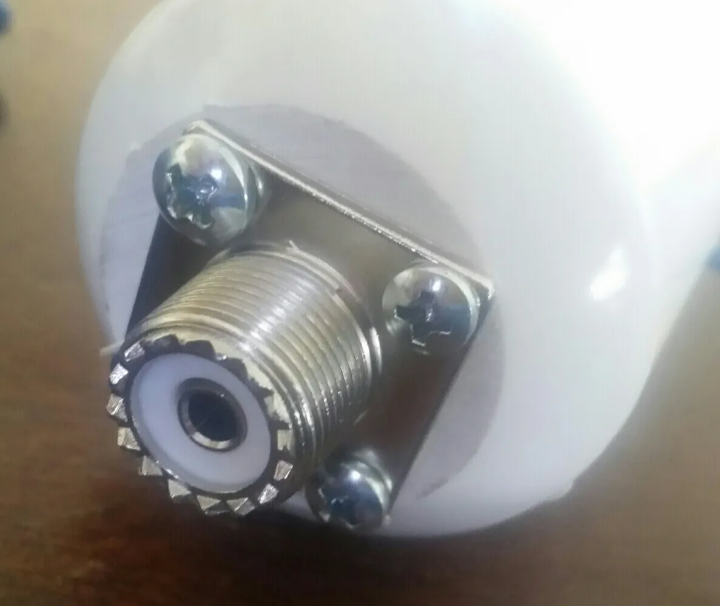

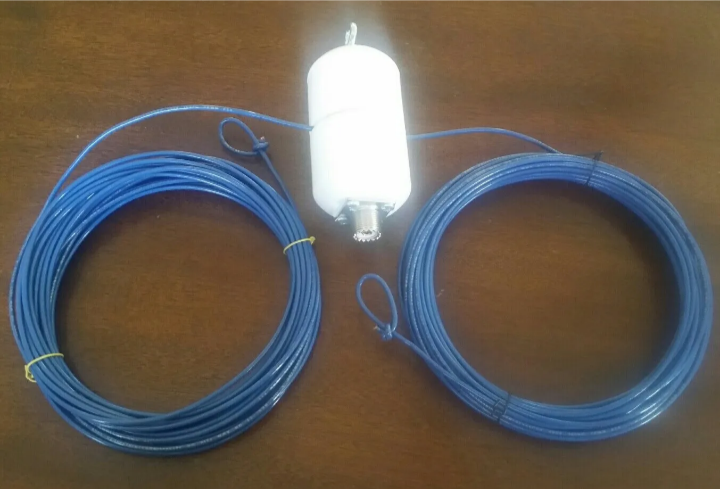

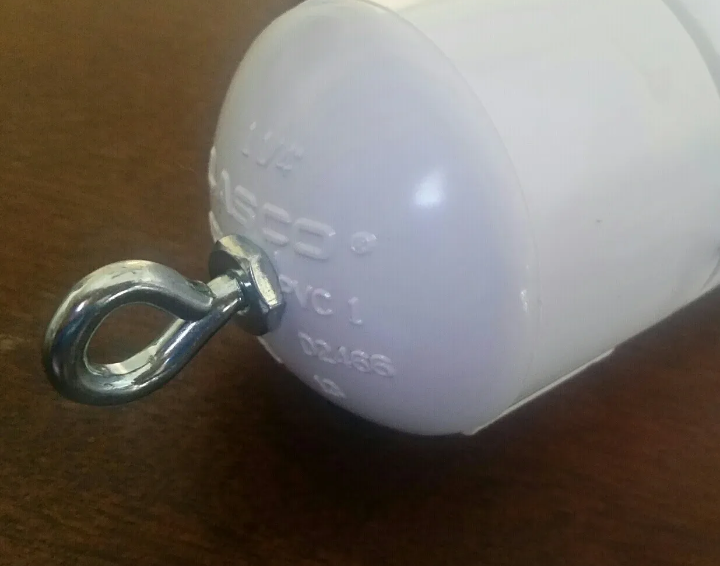

Half-wave OCF (Off-center fed) 40 meter dipole antenna with internal 4:1 balun capable of 500 watts. The elements are split as 1/3 and 2/3. One element measures approximately 22 feet, 3.43 inches, and the other measures approximately 44 feet, 6.85 inches. Made from high quality 16 AWG stranded insulated wire. The center feed point can be held up by rope or however you see fit using the eye-lit loop on top, and you can tie into the ends with something non-conductive like nylon, hemp, etc. Run your feed line with a PL-259 up and connect in to the SO-239 on the bottom. Color of wire insulation varies.
