Ham Radio Antenna- Half-Wave Fan Dipole - for 80, 40, and 20 meters
Ham Radio Antenna- Half-Wave Fan Dipole - for 80, 40, and 20 meters
Couldn't load pickup availability

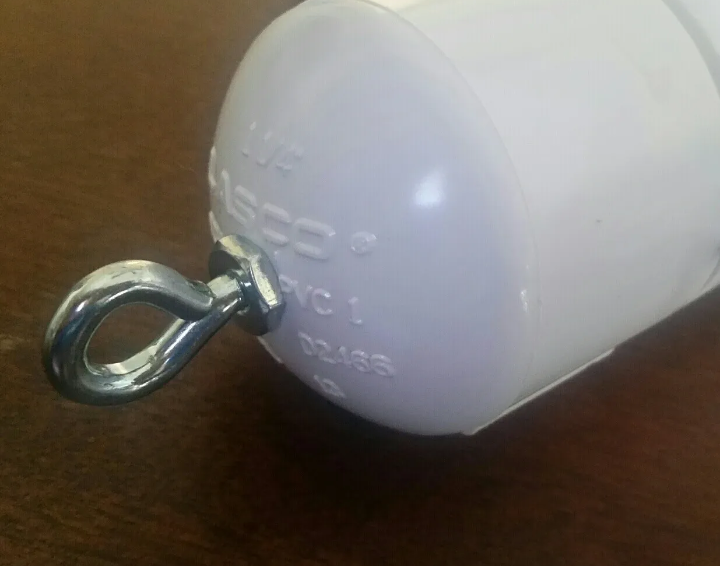

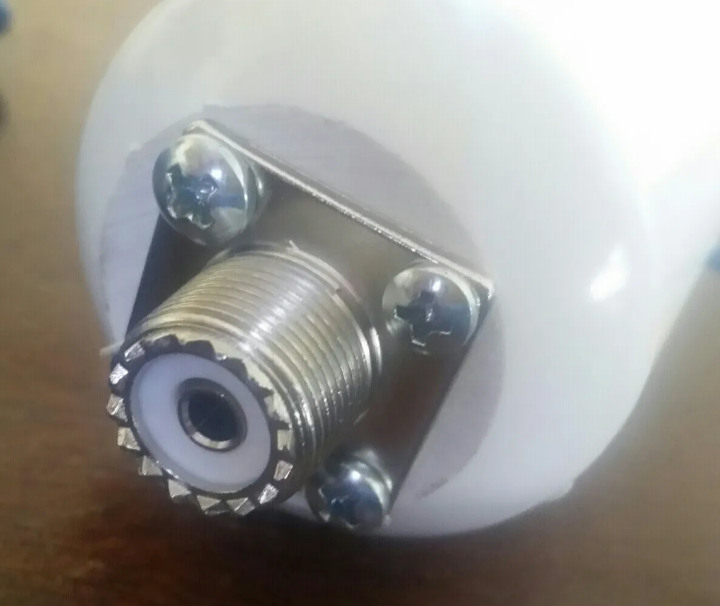

Half-wave Fan Dipole antenna for 80, 40, and 20 meters. The 80 meter legs measure approximately 66 feet, 10.28 inches (66' 10.28") on each side. The 40 meter legs measure approximately 33 feet, 5.14 inches (33’ 5.14”) on each side. The 20 meter legs measure approximately 16 feet, 8.57 inches (16' 8.57") on each side. Elements will be spaced about an inch apart where they exit the center insulator, and will be arranged from top to bottom as large to small (80, 40, then 20.) Made from high quality 16 AWG stranded insulated wire. Run your feed line with a PL-259 up and connect in to the SO-239 on the bottom. Color of wire insulation varies. This unit will handle up to 1,000 watts. Please note that this item does not include any spacer pieces, as spacing would be a matter of preference where some users may opt to have their installed elements maintain some specific distance apart such as 12 inches apart, or 18 inches, etc, while others will choose to run their fan dipole with a true "fan" design where the elements would all be spreading slightly from each other as they travel out toward their ends.
