30, 17 & 12 Meter- Fan Dipole- Half-Wave Ham Radio Antenna

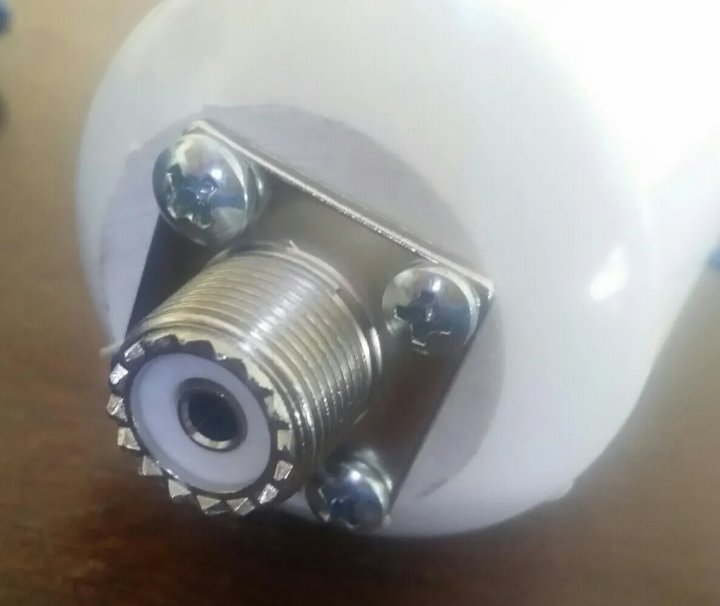

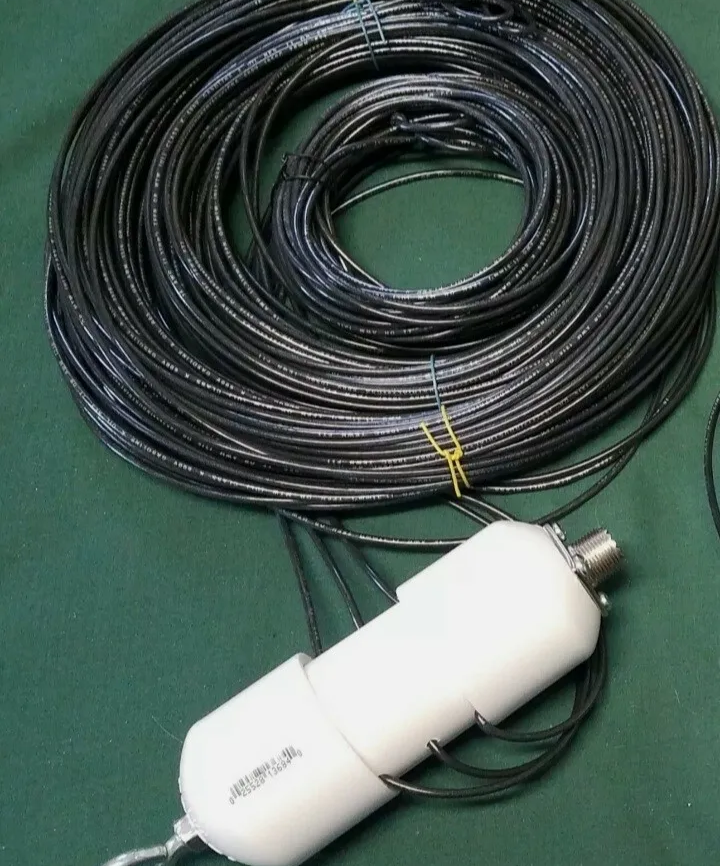

Half-wave Fan Dipole antenna for 30, 17, and 12 meters.  The 30 meter legs measure approximately 23 feet, 2.02 inches (23' 2.02") on each side.  The 17 meter legs measure approximately 12 feet, 11.41 inches (12' 11.41") on each side. The 12 meter legs measure approximately 9 feet, 4.82 inches (9’ 4.82”) on each side.  Elements will be arranged from top to bottom as large to small (30, 17, then 12.)  Made from high quality 16 AWG stranded insulated wire.  Run your feed line with a PL-259 up and connect in to the SO-239 on the bottom. Color of wire insulation varies.  This unit will handle up to 1,000 watts.  Please note that this item does not include any spacer pieces, as spacing would be a matter of preference where some users may opt to have their installed elements maintain some specific distance apart such as 12 inches apart, or 18 inches, etc, while others will choose to run their fan dipole with a true "fan" design where the elements would all be spreading slightly from each other as they travel out toward their ends.
